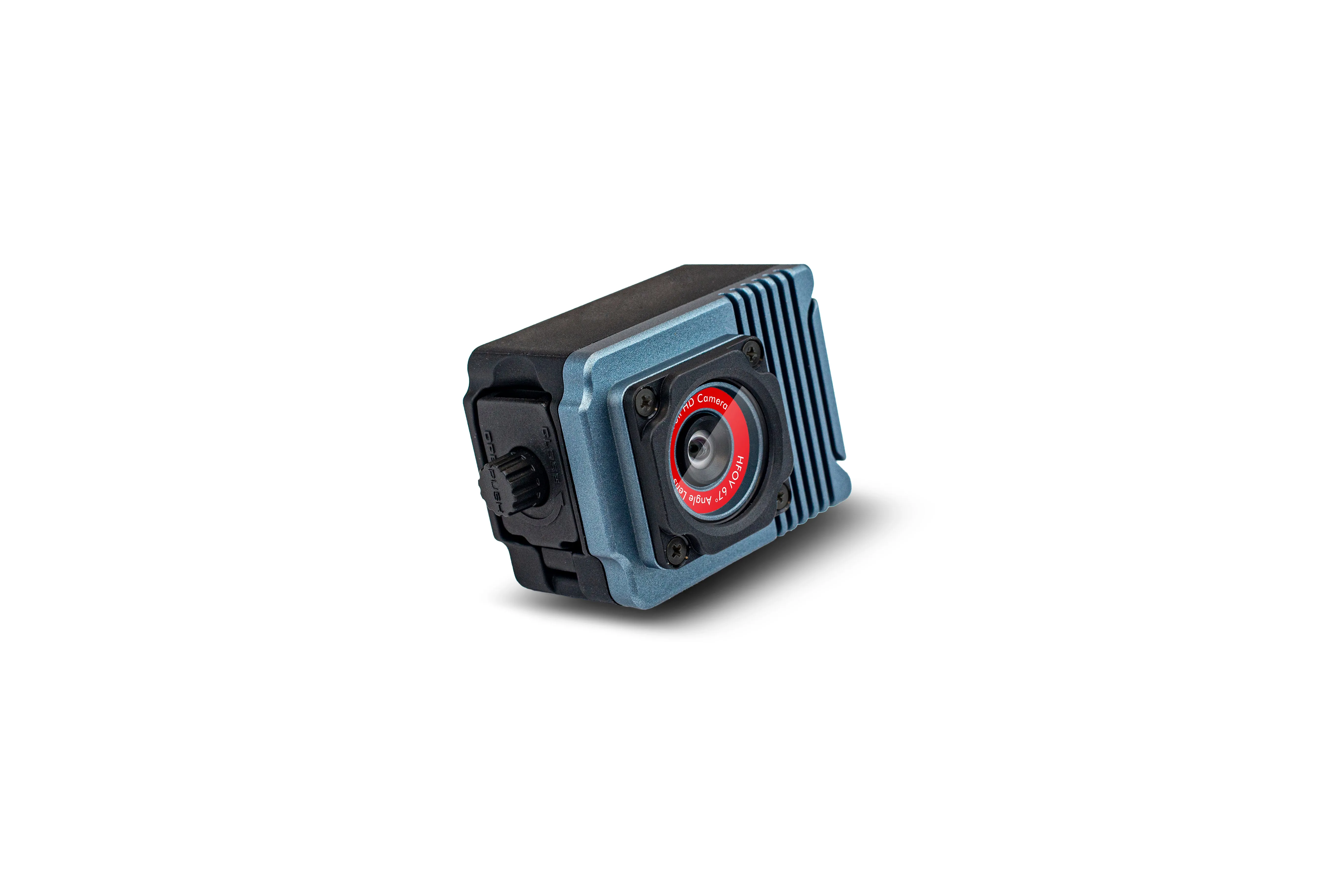

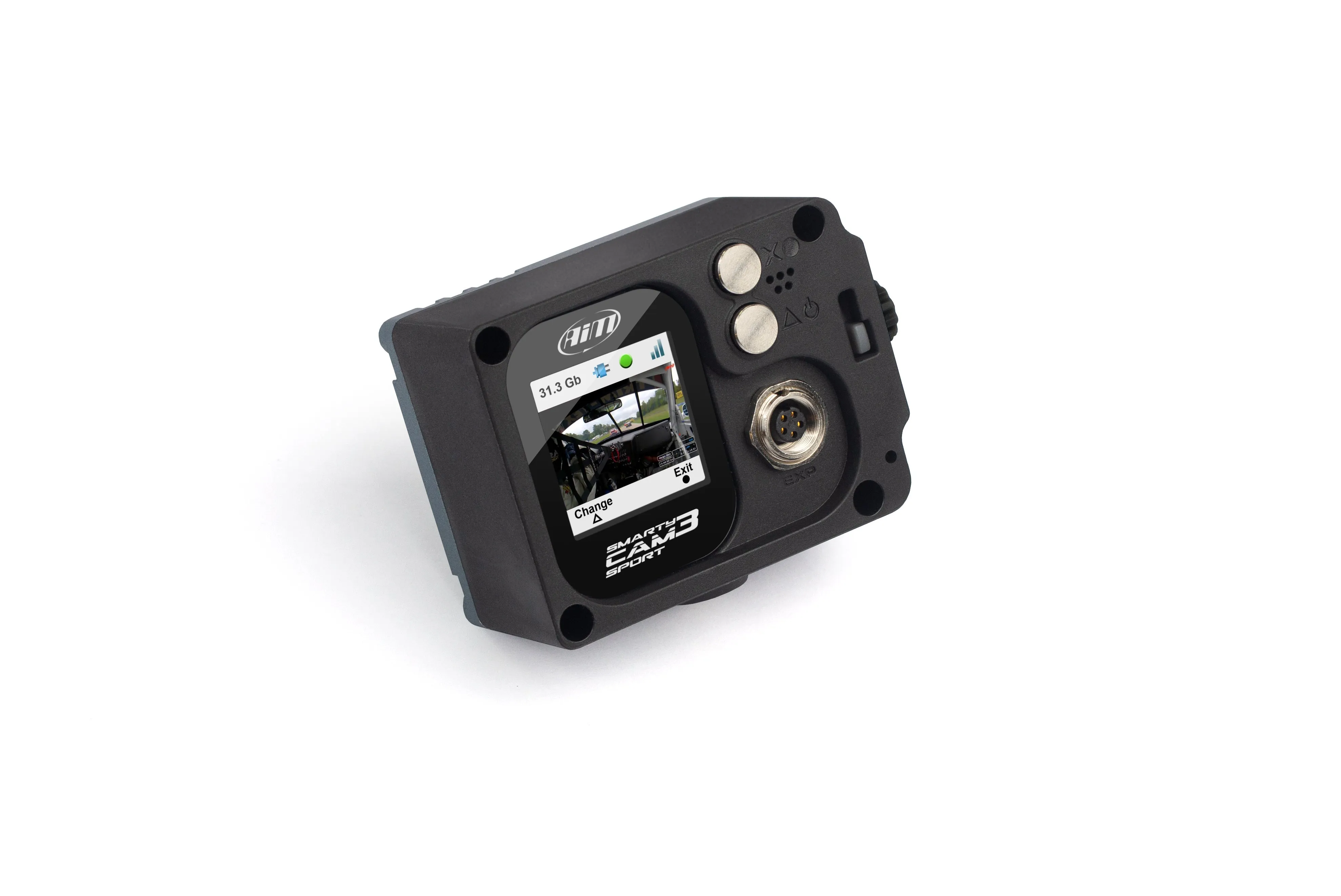

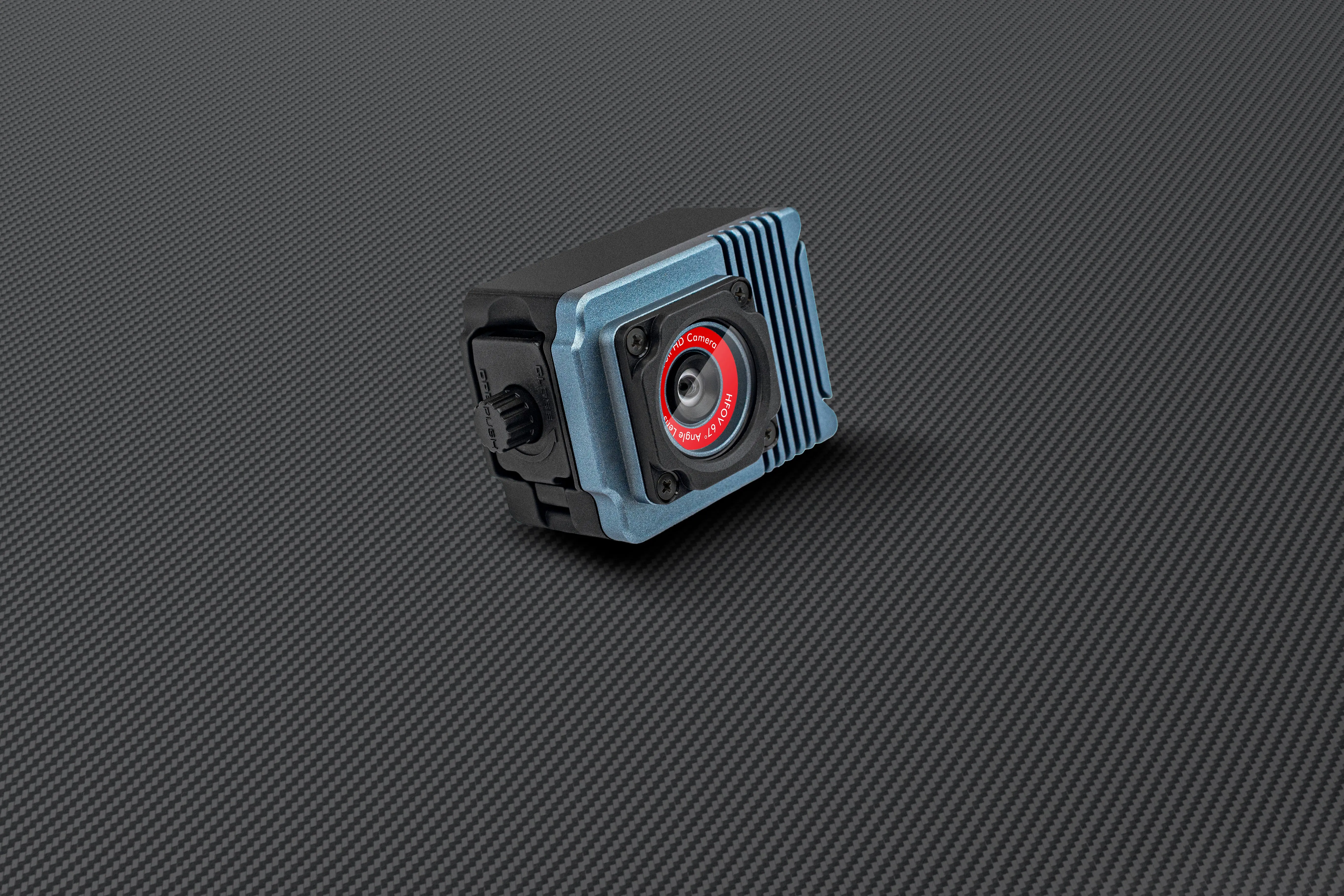

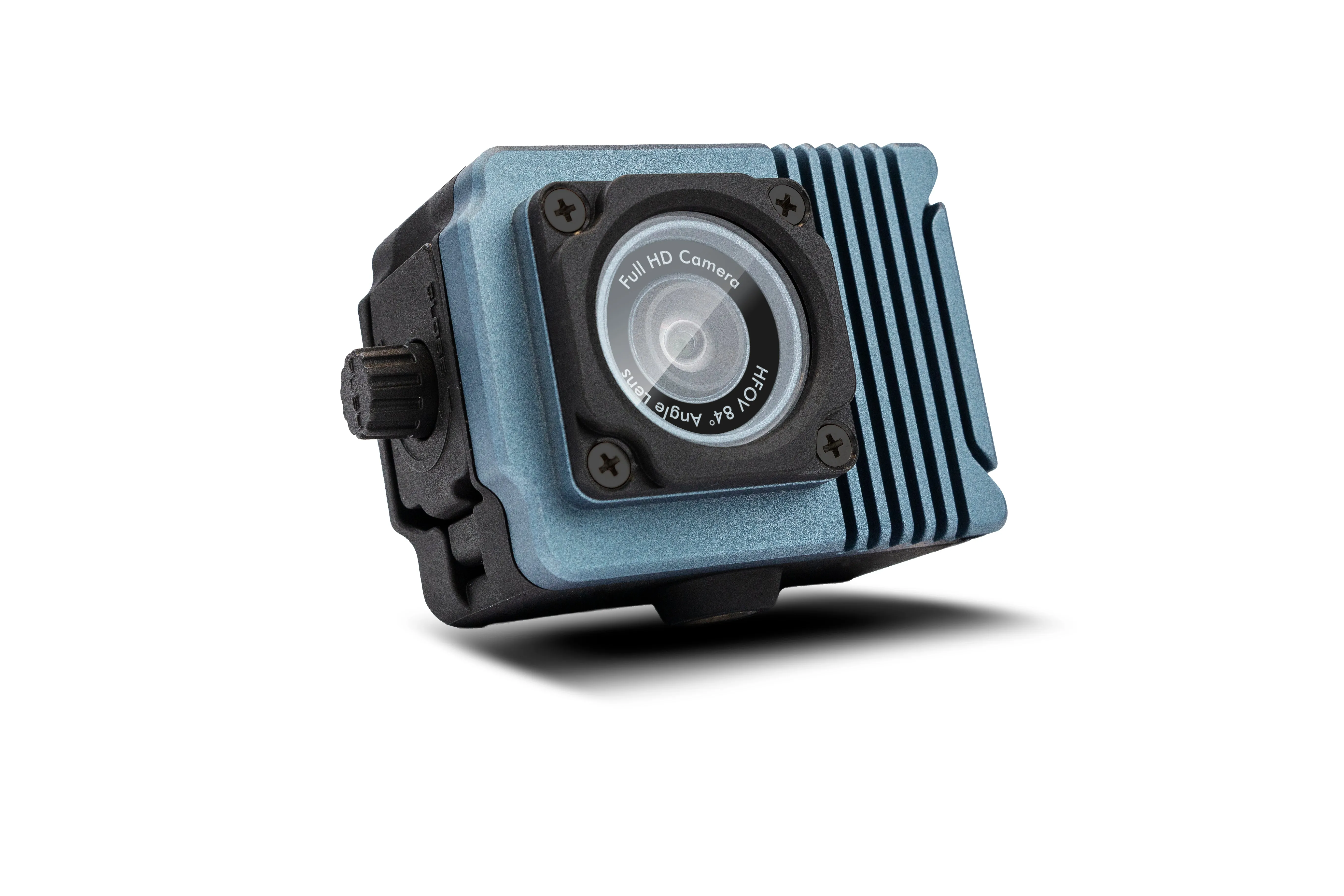

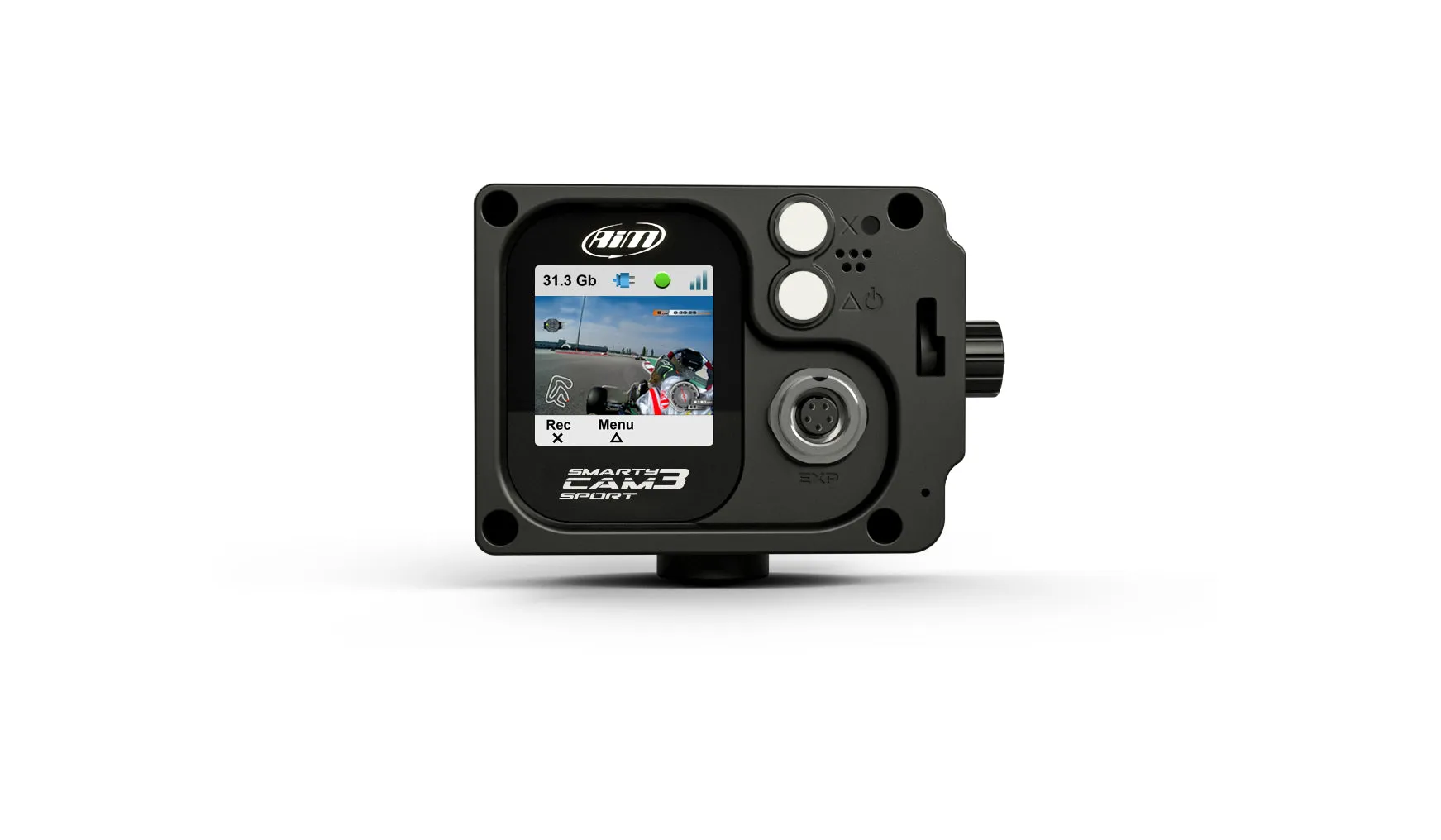

AIM Smarty Cam 3 Sport
The new SmartyCam 3 SPORT camera has been designed for motorsport with a single purpose:
PROVIDING GREAT VIDEOS INCLUDING ALL INFORMATION YOU NEED
SmartyCam 3 SPORT camera overlays all the data from both GPS and AiM loggers connected to your ECU.
Features
Full internal datalogger
All data received from the CAN bus and from the internal sensors are recorded in .mp4 files produced at the end of your test, your SD (or MSD) Card contains all the information you need for a deep data analysis. SD card sold separately.
Designed for the extreme
An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather. That is why SmartyCam 3 Sport is IP65 waterproof made in machinery molded aluminum, PA fiberglass reinforced and features sapphire frontal glass for a complete protection.
Automatic Start & Stop
You have other things to think about while you are racing and SmartyCam 3 is aware of that. That is why it switches on/off automatically and starts/stops recording in the same way.
No "Wave Effect" with Global Shutter CMOS
Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM. SmartyCam 3 cameras have been designed for that environment and for those vibrations. “Wave effect” is just a distant memory.
High quality with small size video files
Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other FHD cameras but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.
Specifications
| Video format | H.264 1,920x1,080 pixels @ 30 fps |
| Display resolution | 128x128 pixels |
| Lens | Low distortion camera lens |
| CMOS Sensor | Global shutter |
| Field of view | 67° or 84° |
| External power | 9-15 V |
| Supported MicroSD Card (not included) | Up to 2TB |
| Connector | 1 Binder 712 female |
| Working temperature range | -10°C/ 50°C |
| Auto Power ON | Yes |
| Auto Power OFF | Yes |
| Auto Start/Stop Recording | Yes |
| Body | Coated aluminum |
| Dimensions | 79.9x54x46.5 mm |
| Weight | 200 g, battery included |
| Waterproof | IP65 |
In The Box
- SmartyCam 3 Sport with 67° or 84° lens
- 2 or 4 m CAN cable,
- Battery charger with AC adapter
- SmartyCam 3 Sport with 67° or 84° lens
- 2 or 4 m CAN cable
- Data Hub 2 ways
- Battery charger with AC adapter.
