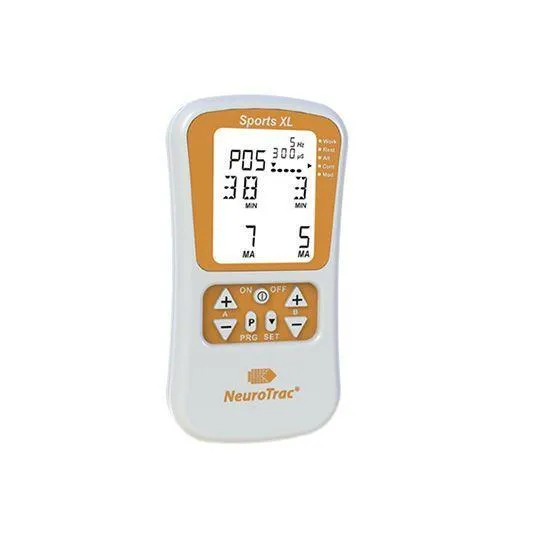

Neurotrac Sports XL



Digital Dual Channel Stimulator (NMES) Suitable for Sports, muscle toning and muscle rehabilitation.

Features:

• Dual Channel -2 lead wires for each channel giving a total of 8 electrode positions.
• 21 Pre-set Sport’s programmes and 3 Customisable programmes.
• Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters. Set up to 5 different phases within each treatment session.
• Stronger symmetrical stimulation, with the reduced Pulse Width: 50 – 330 μS.

Specifications:

• Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant current, maximum output voltage 180 Volts 10 / -30 Volts
• Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50 μS – 330 μS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
• Time duration of the treatment selectable: 1 minute to 90 minutes.
• Low Battery Indicator: If the battery goes below 6.9 volts /- 0.2 volts the battery symbol will flash on/off once every second.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
• Ramp up time 0.1 – 9.9 seconds.
• If the battery voltage is below 6.6 ( /- 0.2) volts the unit will not turn on.

Physical dimensions: 134 x 69 x 29.7 mm.
Weight: 0.18 KG with battery.





NeuroTrac Sports XL Machine comes complete with:

• 1 x 9V Battery
• Two Packet of 50mm x 50mm skin electrodes
• Four Lead Wires
• Operating manual
• Soft carry case
• 1 year warranty on the unit only.
